VRX RX5808 Audio and Video Receiver Module SPI Control Switch 5.8g Broadband FM Synchronous Reception

VRX RX5808 Audio and Video Receiver Module SPI Control Switch 5.8g Broadband FM Synchronous Reception

4.9G 5.8G 6.0G Video and Audio Receiver Module

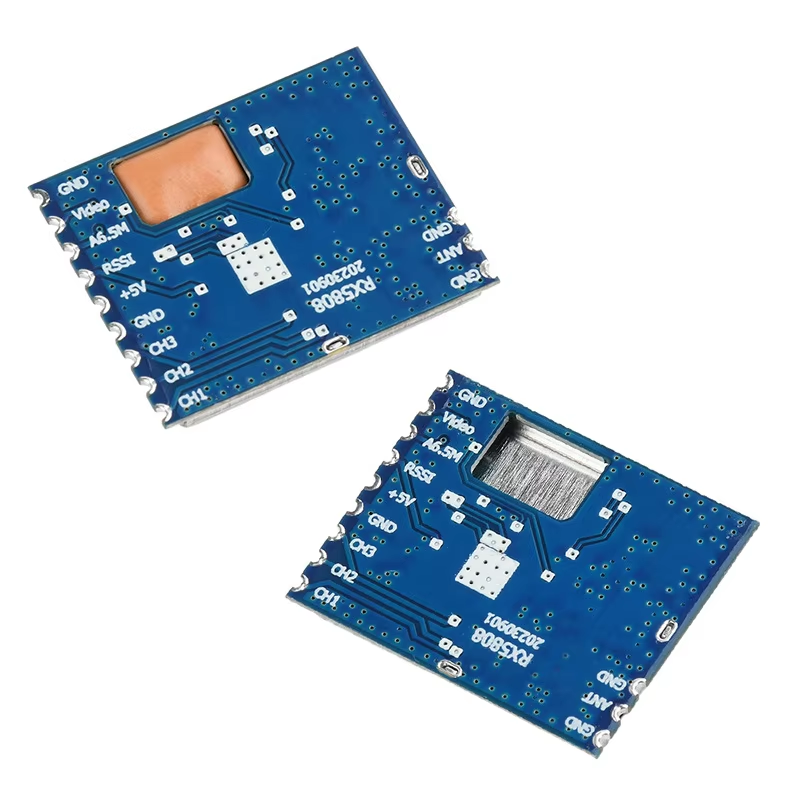

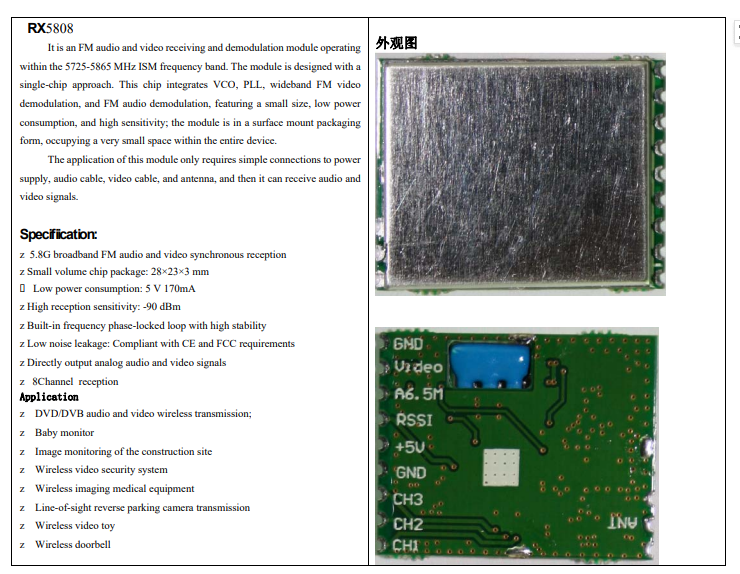

RX5808
1. 5.8G broadband FM audio and video synchronous reception
2. Small volume chip package: 28x23x3 mm
3. Low power consumption: 5 V 170mA
4. High reception sensitivity: -90 dBm
5. Built-in frequency phase-locked loop with high stability
6.Low noise leakage: Compliant with CE and FCC requirements
7. Directly output analog audio and video signals
8. 8 Channel reception

we designed a variety of transmission modules for different applications. The modules are all designed with a single chip. The chip integrates VCO, PLL, broadband FM video demodulation and FM audio demodulation, making the module small in size, low in power consumption, high in sensitivity and the like. The module takes the form of patch package, occupying very small space of the whole machine. The application of this module is simply connected to the power supply, audio cable, video cable, connected to the antenna can receive sound, image signals.
